The "Christmas Tree" Phenomenon: Why It Happens

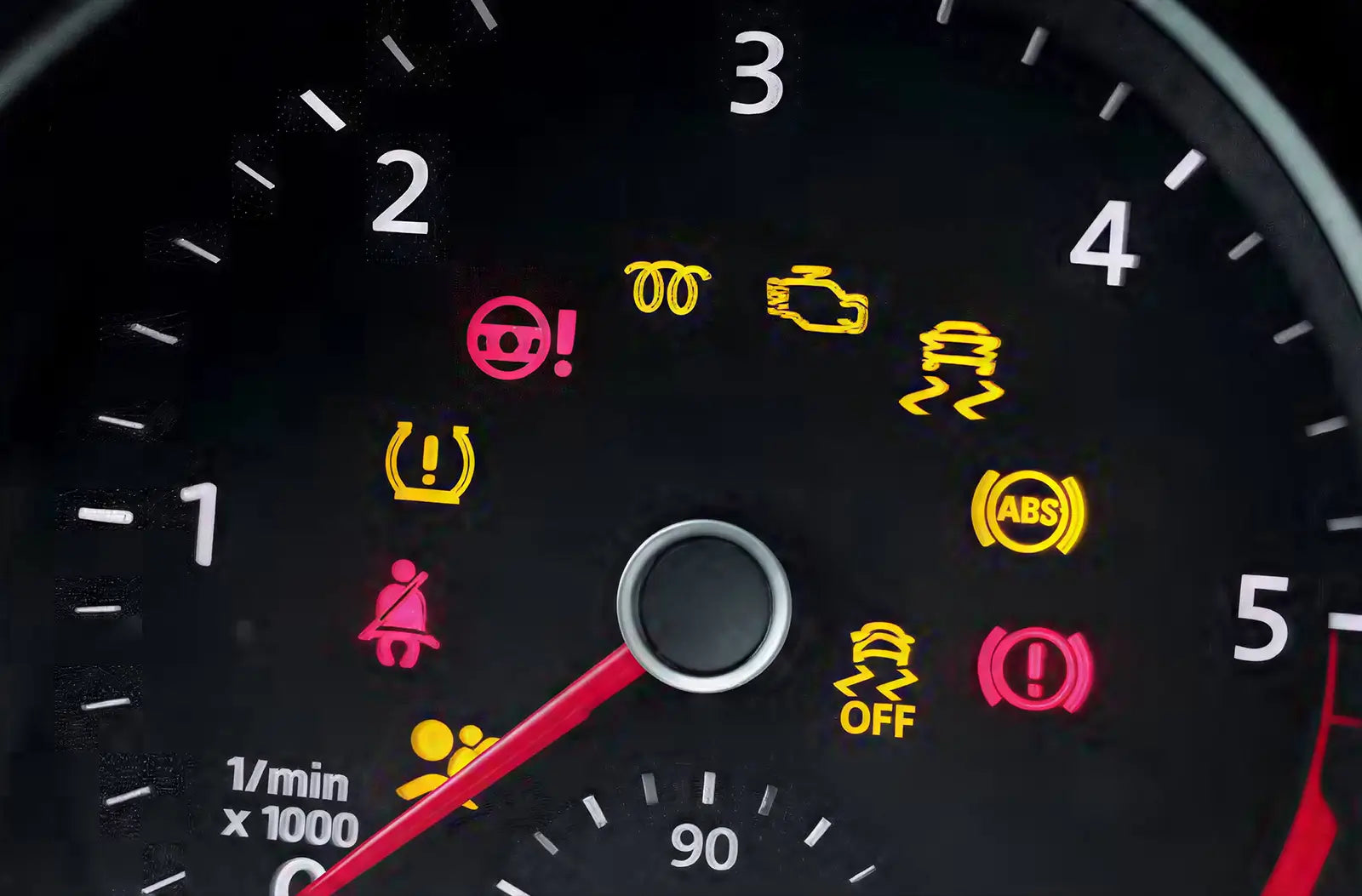

There is nothing quite as anxiety-inducing as witnessing your vehicle’s instrument cluster suddenly transform into a neon array of warning symbols. When the ABS, Check Engine, Traction Control, and SRS (Airbag) lights ignite simultaneously, it is natural to assume that multiple complex systems have suffered catastrophic failure at the exact same moment. However, in modern automotive engineering, this "Christmas Tree" effect is rarely caused by simultaneous hardware disintegration.

Instead, it is usually a testament to the high level of inter-module communication in today’s vehicles. Modern cars rely on a shared data highway known as a CAN-bus. If a single pivotal sensor—such as a wheel speed sensor—fails, or if the main gateway module detects a power fluctuation, it broadcasts an error signal that ripples through the entire network. To protect the driver, every module that depends on that data automatically triggers a warning light. Recognizing that a single sensor issue is often the "patient zero" for multiple alarms is the first step toward effective troubleshooting.

The Diagnostic Gap: Why Generic Tools Are Not Enough

If you have ever asked, "what is a OBD2 scanner?" and purchased a basic plug-and-play device to solve these issues, you likely discovered that it could only read generic powertrain codes. While these tools can tell you why your engine light is on, they are essentially "blind" to the chassis and safety networks.

When your dashboard is lit with diverse warnings, you require more than a generic code reader. You need a professional-grade suite that can speak the specific languages of different vehicle brands. For instance, if you are looking for an Acura OBD2 scanner to decode complex VSA (Vehicle Stability Assist) faults, or the best OBD2 scanner for Toyota to interrogate proprietary chassis sensors, a basic tool will fail. You need an OBD2 scanner professional unit that can access the ABS and Body Control Modules (BCM). Furthermore, if you are experiencing airbag alerts, an SRS OBD2 scanner is essential to isolate whether the fault is in the airbag module itself, a clock spring, or a simple under-seat connector corrosion issue.

Precision Diagnostics: Leveraging LAUNCH Professional Tools

To navigate the labyrinth of multi-system faults, you need hardware that offers professional transparency. The following LAUNCH diagnostic suites are designed to help you transform a chaotic dashboard into a clear, actionable repair plan.

The Global Connectivity Leader: LAUNCH Creader Professional 919 Expert

When multi-system alarms trigger, the LAUNCH Creader Professional 919 Expert provides the panoramic visibility required to solve them. Its strength lies in its ability to bridge the gap between complex electronic subsystems.

Why it shines for multi-system faults: The 919 Expert is equipped with a VCI Bluetooth connector, which is invaluable when you need to observe live data while moving the vehicle to test sensors (like wheel speed sensors). It provides a full-system health report, allowing you to see which modules are reporting "Communication Loss." This helps you quickly determine if you are looking at a faulty gateway or a localized wiring short. With its support for Actuator Tests (Active Tests), you can command modules to cycle independently, proving the health of the hardware while verifying the logical path of the control signal.

The Focused Maintenance Expert: LAUNCH Creader Professional 129 Expert

If your goal is to tackle the most common causes of multi-system lights—specifically the four core pillars of automotive operation (Engine, Transmission, ABS, and SRS)—the LAUNCH Creader Professional 129 Expert is a high-performance, streamlined asset.

Why it shines for multi-system faults: It is specifically engineered for precision in the most critical safety and performance modules. When multi-lights appear, it is frequently a sign of voltage instability within the battery management system. The 129 Expert provides advanced service functions like battery matching and electronic reset procedures, which are essential for recalibrating a vehicle after a power-dip-induced alarm. It’s an ideal choice for the user who wants professional diagnostic capability in a compact, corded unit that is ready to perform the moment it is plugged into the OBDII port.

A Professional Diagnostic Workflow

When your dashboard lights up like a holiday display, use this logical process to solve the problem efficiently:

Step 1: The Global Network Health Scan. Connect your LAUNCH scanner and run a full-system search. Look for "Communication Loss" or "Power Supply" errors first. These often precede individual sensor faults and indicate that the root cause is a bad ground, a failing battery, or a gateway failure.

Step 2: Compare Live Data. Use the Live Data function in the 919 Expert or 129 Expert to see if all wheel speed sensors are reporting identical values. If one sensor is stagnant while the car is moving, you have identified the culprit that triggered both the ABS and Stability Control lights.

Step 3: Verification through Service Functions. Many modern dashboard lights are "latched" in memory. After identifying and fixing a sensor or battery issue, use the service functions on your LAUNCH tool to perform a system reset. This confirms that the modules have successfully re-handshaked and that the error is cleared.

Multiple dashboard warnings are rarely as dire as they appear. They are the vehicle’s way of communicating a single, solvable data conflict. By investing in the LAUNCH Creader Professional 919 Expert or the LAUNCH Creader Professional 129 Expert, you move from a position of panic to one of control. You gain the ability to perform dealership-level diagnostics, avoid unnecessary parts swapping, and maintain your vehicle’s safety systems with total confidence.

Frequently Asked Questions

Q: Why don't the lights go away after I disconnect the battery?

A: Many modern modules store faults in "non-volatile memory." Clearing them requires a scan tool that can send a command to the module's memory, which a simple battery disconnect cannot do.

Q: Which tool should I choose?

A: If you require wireless freedom for dynamic testing and advanced system coding, the 919 Expert is the premier choice. For a focused, professional tool that handles the four core safety and performance systems with efficiency, the 129 Expert is an unmatched value.

Disclaimer

This technical guide and diagnostic advice are for educational purposes only. Automotive electrical systems are highly complex, and any work involving safety systems such as the SRS (Airbags) or ABS (Brakes) should be performed with extreme caution, preferably with a factory service manual at hand. If the diagnostic tool indicates a failure in a critical safety component, please consult a certified technician to ensure your vehicle remains safe for the road.
