The Critical Necessity of ABS Bleeding

The Anti-lock Braking System (ABS) is a marvel of modern automotive safety, designed to prevent wheel lockup during emergency stops and ensure steering control when you need it most. However, the system relies on a complex network of internal valves, pumps, and solenoids to modulate brake pressure. When air enters this hydraulic circuit—often during a brake line replacement, caliper swap, or master cylinder service—it doesn't just sit in the lines; it gets trapped inside the ABS pump itself.

If you perform a traditional "manual" brake bleed, you may clear the air from your lines, but you will likely leave air pockets within the ABS module. This leads to the infamous "spongy" pedal feel and a lack of braking confidence. To truly purge the system, you must engage the ABS pump and cycle its internal valves while the bleeding process is underway. This is where modern diagnostic technology transforms from a luxury into a necessity. By using an advanced bidirectional obd2 scanner, you can electronically command the vehicle to purge itself, ensuring your brakes function exactly as the manufacturer intended.

Why You Need a Bidirectional Diagnostic Partner

If you are still attempting to work on modern braking systems using a basic obd2 scanner tool designed only for engine codes, you are operating with an incomplete toolkit. A standard code reader can retrieve faults, but it lacks the ability to "talk back" to the car’s computer.

To effectively perform an ABS bleed, you need the capability of two-way communication. A bidirectional tool acts as an extension of your own mechanical expertise, allowing you to trigger the ABS motor to spin, cycle the isolation valves, and monitor real-time pressure changes within the hydraulic block. Without this digital intervention, the trapped air remains stagnant inside the module, rendering traditional bleeding techniques insufficient. Whether you are working on a domestic ford obd2 scanner compatible vehicle or a complex European import, the ability to command the system is the differentiator between a successful service and a frustrating repeat attempt.

Precision Through LAUNCH: The Professional Standard

For the DIY mechanic who refuses to compromise on safety, the LAUNCH Creader Professional (CRP) series provides the definitive answer to complex hydraulic mysteries. These tools are engineered to handle the nuances of modern automotive data, providing the deep-system visibility that was once reserved for professional dealer technicians.

If you are looking for an exceptional, professional-grade diagnostic solution that supports bidirectional control, the LAUNCH Creader Professional 919 Advanced is an incredible asset for your home workshop. This scanner is a true powerhouse, offering the advanced "Active Test" capabilities required for ABS bleeding. With the 919 Advanced, you can manually trigger the ABS pump and cycle the solenoids, ensuring that every trapped air bubble is forced out of the module and toward the bleeder valves at the wheels. Its high-resolution touchscreen and intuitive interface simplify the complex multi-step bleeding procedures required by many modern vehicles, acting as your personal diagnostic guide. It is the perfect tool for owners who demand the ability to interact directly with their vehicle's safety systems, providing a diagnostic experience that is both professional and user-friendly.

For those who prioritize essential four-system diagnostics and efficient service resets, the LAUNCH Creader Professional 129 Advanced is an ideal, highly dependable choice. While it focuses on core diagnostic and service functions rather than bidirectional testing, it is an essential piece of equipment for any home garage. It offers comprehensive coverage of the four primary systems—Engine, Transmission, ABS, and SRS—ensuring that you can accurately diagnose why your ABS light is triggered in the first place. Whether you are dealing with a faulty wheel speed sensor or need to reset an oil or electronic parking brake light, the 129 Advanced provides the deep-system communication required to pinpoint faults with factory-level accuracy. It is a robust, highly reliable tool that serves as the perfect companion for routine maintenance and essential system health checks.

A Masterclass in the ABS Bleeding Procedure

When you suspect air is trapped in your ABS module, follow this structured diagnostic and service roadmap. This process combines traditional mechanical skills with modern electronic control.

Step 1: The Full-Network Electronic Audit

Before beginning, connect your LAUNCH tool to the vehicle’s OBDII port and run a "Full System Scan." Ensure there are no active fault codes in the ABS or Stability Control modules. If a fault is currently active (e.g., a shorted solenoid), the ABS module may refuse to enter "Bleeding Mode" as a safety precaution. Address any active codes first to ensure the system is "ready" for service.

Step 2: The Physical Bleed Sequence

Preparation: Elevate the vehicle, secure it on jack stands, and ensure you have the correct, fresh brake fluid for your vehicle.

Traditional Bleed: Perform a manual, traditional brake bleed at all four wheels starting from the wheel furthest from the master cylinder (typically the passenger rear). This removes the majority of air from the lines.

The Bidirectional Purge: Connect your LAUNCH Creader Professional 919 Advanced. Navigate to the "Service Functions" menu and select "ABS Bleeding."

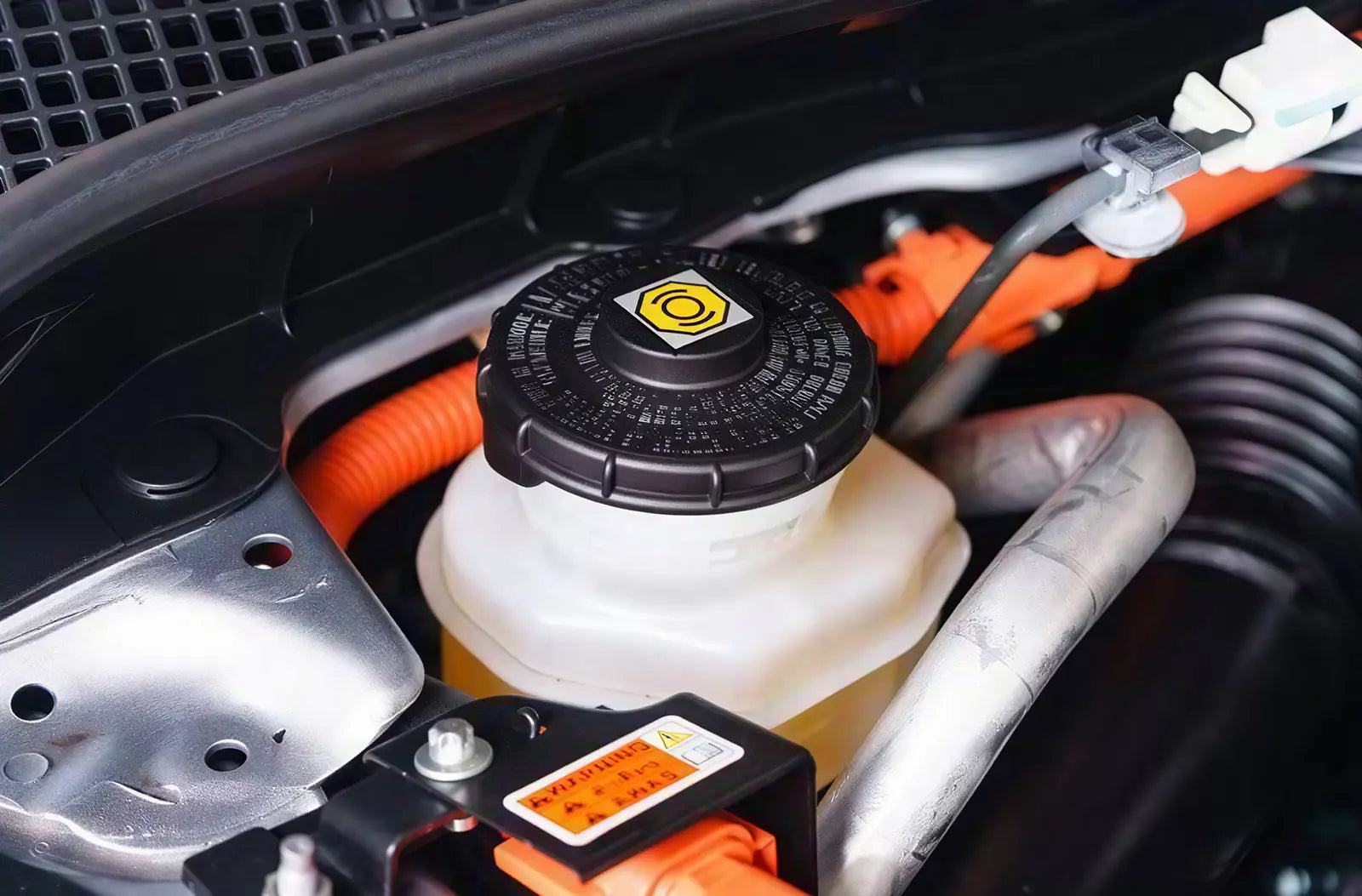

Executing the Command: Follow the on-screen prompts. The scanner will command the ABS pump to run and the solenoids to cycle. During this phase, you must keep the bleeder valves open at the wheels to allow the air pushed out by the pump to escape. Keep a close eye on the master cylinder fluid level—if it runs dry during this step, you will be forced to restart the entire process.

Step 3: Verification and Finalization

Once the electronic sequence is complete, close all bleeder valves and perform one final manual bleed at each wheel to ensure any lingering micro-bubbles are purged. Top off the fluid reservoir and test the brake pedal feel; it should be firm and responsive with no "spongy" travel.

Why This Investment Pays For Itself

Diagnostic tools are an insurance policy for your vehicle’s safety systems. Investing in a professional diagnostic tool like the LAUNCH CRP series is the single most effective way to protect your long-term finances.

Confirming the Root Cause: You avoid replacing expensive ABS modules when the issue is simply trapped air, saving the cost of parts you didn't need.

Professional Results at Home: By performing your own ABS bleed, you achieve a level of braking performance that manual methods cannot reach, ensuring your safety in emergency braking situations.

In-Depth System Coverage: The ability to dive into manufacturer-specific protocols is what makes the LAUNCH series a reliable choice for any vehicle brand, providing you with the exact diagnostic power used by professional technicians.

The Responsibility Clause: Recognizing Limits

While a professional-grade scanner provides a massive advantage, remember that electronics cannot fix physical, terminal wear. If your scan tool shows no electronic faults, and you have successfully bled the system, but the pedal still feels "spongy," you may be dealing with a physical, mechanical failure—such as a leaking master cylinder seal or a collapsed brake hose. No scanner can replace the need for physical mechanical inspection in those scenarios. Use the tool to rule out all electronic and air-lock issues first—which accounts for a surprising percentage of modern braking faults—before concluding that the problem is a severe internal failure.

Smart Maintenance: Beyond the Bleed

While bleeding is essential, maintaining the braking system requires a holistic approach:

Brake Fluid Integrity: The ABS module is a collection of tiny, high-pressure valves. Old, moisture-contaminated brake fluid turns into acidic sludge that can cause these valves to seize internally. Flushing your brake fluid every two years is the best way to ensure the ABS module itself doesn't fail.

The "Clearance" Audit: If you perform a brake bleed, take the opportunity to inspect your caliper slider pins. If these are seized, the brake pads will wear unevenly, leading to a "pulsing" sensation that feels like a brake fault but is actually just a mechanical alignment issue.

Connector Sanitation: Wheel speed sensors live in the most hostile environment on the car—exposed to water, salt, and heat. If you ever have the wheel off for a tire rotation or brake service, use a high-quality electrical contact cleaner on the sensor connector to prevent the corrosion that eventually triggers a false "open circuit" fault that forces the ABS system offline.

Frequently Asked Questions

Q: Is the CRP 919 Advanced as effective as an OE shop tool?

A: Yes. It provides the essential bidirectional and deep-system data needed for 95% of ABS and braking system diagnostics, matching the performance of much more expensive dealer-level equipment.

Q: Does this scanner work on all ABS bleeding systems?

A: The LAUNCH Creader Professional series is designed for high compatibility across thousands of vehicle models. It excels at communicating with the complex ABS and Chassis Control networks found in modern vehicles.

Q: I'm not a pro mechanic; is this too complex?

A: The user interface of the LAUNCH series is designed for clarity. The "Service Reset" menus are organized by vehicle make, allowing you to find your specific model and bleeding procedure in seconds.
