The Unique Architecture of the CVT

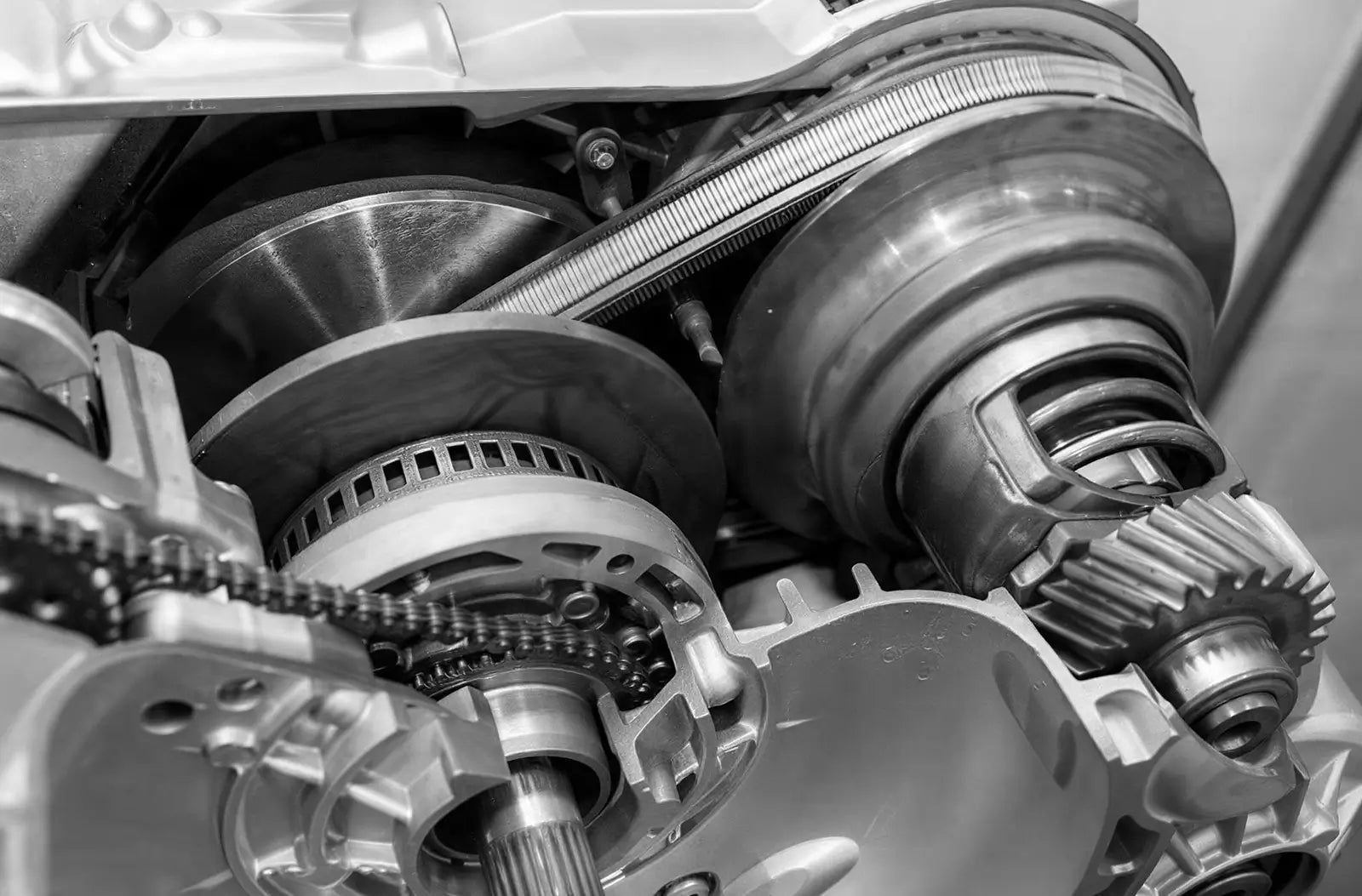

The Continuously Variable Transmission (CVT) has revolutionized the way we drive. By replacing traditional, distinct gear sets with a system of pulleys and a steel belt, the CVT provides infinite gear ratios, resulting in unmatched fuel efficiency and seamless acceleration. However, this sophisticated design comes with a unique set of vulnerabilities. Unlike a traditional stepped automatic, a CVT relies on extreme hydraulic pressures and highly specific friction characteristics to function. When the steel belt slips against the pulleys, or when the hydraulic solenoids responsible for ratio management fail to respond, the result is the infamous "rubber band" feel, whining noises, and an eventual transition into "Limp Mode."

Diagnosing a CVT is not like diagnosing a standard transmission. Because there are no physical gear shifts, you cannot simply listen for a "hard shift" to identify a fault. Instead, you must monitor the transmission's "Ratio Control" data in real-time. If you are noticing a hesitation in acceleration or a sudden loss of power during highway cruising, your vehicle’s computer is likely already storing the answers in the form of specific DTCs (Diagnostic Trouble Codes). To solve these issues, you need to step beyond a basic car error code reader and move into the world of professional drivetrain telemetry.

Why Your Diagnostic Strategy Must Be Data-Centric

If you are using a basic obd scanner for car or a generic obd tool scanner that only retrieves engine codes, you are effectively flying blind. CVTs are incredibly sensitive to transmission fluid temperature (TFT) and input/output shaft speed synchronization. A minor discrepancy in hydraulic pressure—caused perhaps by a failing pressure sensor—can lead to total belt failure if left unaddressed.

For the serious DIY mechanic or the high-value vehicle owner, relying on a basic eobd scan tool or a simple odb2 code reader is a recipe for expensive mistakes. You need a device capable of "deep-module" access—one that can communicate directly with the CVT Control Module. Professional diagnostic for cars tools allow you to perform "active tests," which enable you to monitor the ratio pressure in real-time. Without this data, you are simply guessing at the state of your drivetrain's health.

Precision Through LAUNCH: The Professional Diagnostic Ecosystem

When the stakes are high—and with a CVT, the stakes are almost always a major repair bill—you need the reliability of the LAUNCH Creader Professional (CRP) series. These tools are engineered to handle the nuances of modern transmission electronics, providing visibility that was once reserved for dealer technicians.

If you are looking for a reliable, compact, yet highly professional solution, the LAUNCH Creader Professional 919 Advanced is an exceptional choice. It is a robust, cable-connected diagnostic suite designed specifically for those who want professional-level insights. As a versatile diagnostic tool for drivetrains, the 919 Advanced excels at pulling manufacturer-specific CVT codes that generic devices ignore. It is the perfect tool for owners who demand high-end functionality, providing the deep-system communication required to diagnose complex pulley and ratio behaviors. Whether you are using it for a general diagnostic suite or specifically to troubleshoot CVT pressure faults, it is a tool that brings professional accuracy to your home workshop.

For those who prioritize advanced service functions and the freedom of wireless operation, the LAUNCH Creader Professional 919 Expertis the premier choice. This scanner is specifically engineered to include a professional-grade VCI Bluetooth connector, offering a wireless, stable link to your vehicle’s systems, which allows you to move freely around the vehicle during diagnostics. It is particularly popular among owners looking to perform "CVT Ratio Adaptations," a critical service reset that must be performed after any major fluid flush or belt-related repair. When you are looking through diagnostic for cars reviews, you will find that the 919 Expert is consistently praised for its bidirectional capabilities. It doesn't just read code; it allows you to perform "Active Tests," ensuring that you are diagnosing with factory-level precision, regardless of your vehicle's make or model.

A Masterclass in Diagnosing CVT Faults

When your CVT exhibits "rubber band" acceleration or whining, follow this structured diagnostic roadmap. This method moves beyond guesswork and into the realm of professional mechanical reasoning.

Step 1: The Full-Network "Ratio" Snapshot

Connect your LAUNCH tool to your vehicle’s OBDII port and initiate a full-system health report. Unlike generic tools, the CRP 919 series will interrogate the Transmission Control Module specifically. You are looking for codes relating to "Ratio Control Malfunction," "Primary Pressure Sensor Out of Range," or "CVT Stepping Motor Fault." If you see a "Pressure Sensor" code, the CVT is likely entering "limp mode" to protect itself from belt damage. This is a common and fixable electronic fault, not a terminal mechanical failure.

Step 2: Decoding "Live Data" Speed Synchronization

Navigate to the "Live Data" on your obd tool scanner. This is the key to a successful diagnosis. Monitor the "Primary Pulley Speed" and "Secondary Pulley Speed" PIDs.

The Synchronization Test: In a perfectly functioning CVT, these two speeds should correlate precisely with the commanded gear ratio.

The Slip Test: If the Primary Pulley Speed spikes while the Secondary Pulley Speed remains stagnant during acceleration, you have identified a physical belt slip. If both speeds correlate correctly but the car still feels sluggish, the issue is likely a "Primary Pressure" solenoid fault, which can be diagnosed by checking if the pressure PIDs are responding to your accelerator pedal input.

Step 3: The Bidirectional Calibration Reset

Because your LAUNCH tool supports bidirectional control, you can perform the "CVT Initialization" or "Ratio Adaptation" reset directly from the tool's menu. Follow the on-screen instructions, which often involve warming the transmission to a specific temperature. Once the process is complete, the scanner will send a command to the module to "Zero" the pulley pressure parameters. This command-based diagnostic is the "holy grail" for DIY mechanics, as it allows you to reset the system without paying a dealer premium.

Why This Investment Pays For Itself

Diagnostic tools are an insurance policy for your vehicle’s longevity. Investing in a professional diagnostic tool like the LAUNCH CRP 919 series is essentially an insurance policy for your drivetrain and chassis longevity.

Confirming the Root Cause: You avoid replacing a CVT transmission when the fault is actually a forty-dollar pressure sensor or a bad wiring harness connector.

Saving on "Learning" Procedures: Many modern CVTs require an electronic "re-learning" or "adaptation" reset after a simple fluid change. Your LAUNCH scanner allows you to perform these resets yourself, saving hundreds in shop labor.

In-Depth System Coverage: The ability to dive into manufacturer-specific protocols is what makes the LAUNCH series a reliable choice for any vehicle brand, providing you with the exact diagnostic power used by professional technicians.

The Responsibility Clause: Recognizing Limits

While a professional-grade scanner provides a massive advantage, remember that electronics cannot fix physical, terminal wear. If your scan tool shows a calibration error that keeps returning even after a successful reset, or if you hear a grinding noise coming from the transmission case, you may be dealing with a physical issue, such as a damaged pulley face or a snapped steel belt. No scanner can replace the need for physical mechanical inspection in those scenarios. Use the tool to rule out all electronic and sensor-offset issues first—which accounts for a surprising percentage of modern transmission faults—before concluding that the problem is a severe mechanical failure.

Smart Maintenance: Beyond the Scanner

While diagnostics help identify failures, true CVT longevity requires a shift in how you maintain these specific transmissions:

The "Cooling Circuit" Audit: CVTs are incredibly heat-sensitive. Every two years, inspect the cooling lines running from the transmission to the radiator. If these lines become restricted with sludge, the internal fluid temperature will skyrocket during highway travel, killing the belt's friction coefficient. Using your scanner to monitor the "Transmission Fluid Temperature" on a 90°F day will tell you if your cooler is up to the task.

Fluid Shear Awareness: Unlike a standard automatic, a CVT has a "Traction Fluid" additive that prevents the belt from slipping. This additive shears down over time. Replacing your fluid before the manufacturer suggests is the single most effective way to prevent the metal-on-metal wear that creates the "CVT whine."

Avoid the "Stop-Start" Strain: If you are driving a high-torque vehicle, avoid "launching" from a standstill. The CVT is designed for efficiency, not high-torque impact. Your scanner can monitor the "Torque Request" PID; if you see your driving habits consistently requesting maximum torque from a dead stop, you know you are over-stressing your belt and need to change your driving style.

Frequently Asked Questions

Q: Is the CRP 919 series effective for premium car brands?

A: Yes. The CRP 919 Advanced and Expert are engineered for high compatibility. Whether you need a sophisticated tool for a Japanese import or a rugged diagnostics solution for a compact SUV, it provides deep-system communication that generic tools simply ignore.

Q: Why does the CVT light stay on even after I perform the reset?

A: Many transmission systems require a "drive cycle" to confirm the repair. You may need to drive the car above a certain speed for a few minutes so the sensors can re-calibrate and confirm the fault is resolved. Your LAUNCH scanner will show you when the status changes from "Current" to "History."

Q: I'm not a pro mechanic; is this too complex?

A: The user interface of the LAUNCH series is designed for clarity. The live graphing function turns abstract numbers into easy-to-read charts, allowing you to see the "story" of your transmission’s health at a glance.
