The "Service ESC" Panic: Why Your Steering Matters

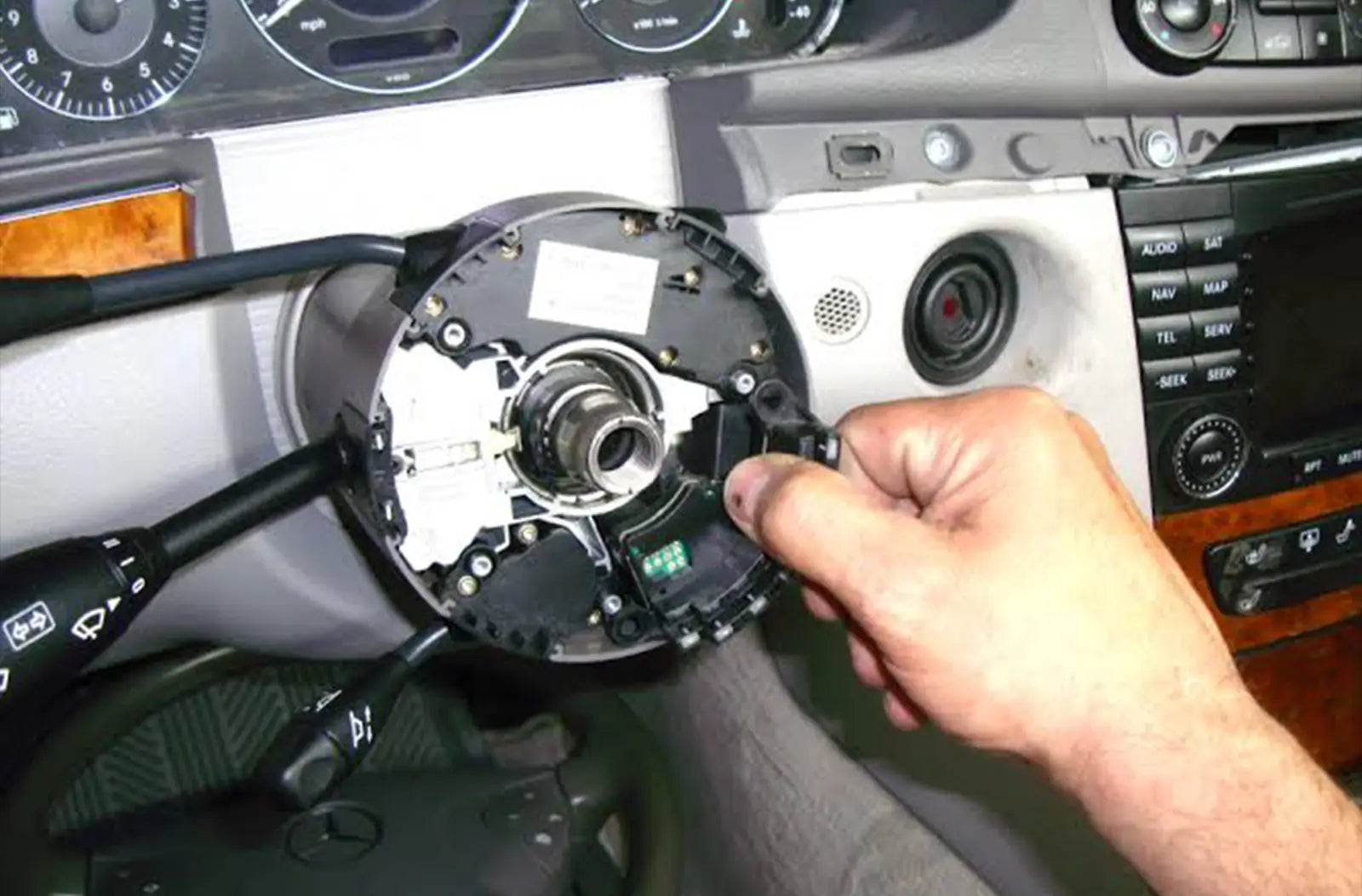

Imagine driving down a winding road when, suddenly, your dashboard erupts with warning lights. The "Electronic Stability Control" (ESC) light flashes, your traction control system disables itself, and perhaps your steering feels subtly "off." For many modern vehicle owners, this is the first encounter with the Steering Angle Sensor (SAS). The SAS is a critical component in your vehicle’s safety architecture; it tracks the exact angle of your steering wheel and reports it to the Stability Control and ABS modules. When this sensor loses its calibration—often due to a dead battery, a simple tire alignment, or even a minor suspension repair—your car effectively "forgets" where the wheels are pointing.

This loss of calibration can render your vehicle’s stability systems useless, making driving in adverse weather conditions genuinely dangerous. Far too many drivers take their cars to the dealership for a simple reset, only to be hit with a significant diagnostic labor fee. What they don't realize is that with the right diagnostic tool, performing an SAS calibration is a straightforward, five-minute task you can complete in your own driveway. It is time to stop fearing the "Service Stability" light and start mastering the electronic systems that keep you safely on the road.

Why You Need a Pro-Level Diagnostic Tool

When an SAS error occurs, a handheld obd2 scanner from a hardware store will be entirely useless. These basic devices are designed only to read engine-specific "P-codes" (Powertrain). They cannot "speak" to the Body Control Module (BCM) or the Steering Angle Module where the calibration data lives. If you attempt to use a basic reader, you will be left staring at a screen that tells you nothing, ultimately forcing you to rely on a shop.

To fix an SAS issue, you need a live data obd2 scanner—a device capable of not just reading codes, but interacting with the steering module in real-time. You need to see the "Live Data" stream to verify that the sensor is reporting 0° when the steering wheel is perfectly centered. If it reports 5° when centered, your stability control system will constantly try to "correct" a drift that doesn't exist, leading to erratic handling and warning lights. To truly master this, you need a tool that treats the entire vehicle network as a priority, ensuring you have the factory-level access required to perform a successful re-calibration.

Precision Through LAUNCH: The Expert’s Choice

For the modern DIY enthusiast, the LAUNCH Creader Professional (CRP) series provides the definitive solution for complex electronic resets. These tools are engineered to handle the complexities of modern automotive architectures, bridging the gap between amateur hobbyist gear and high-end dealer machines.

If you are looking for a reliable, professional-grade partner for your garage, the LAUNCH Creader Professional 919 Advanced is an exceptional choice. It is a highly robust, cable-connected diagnostic suite designed to handle the most demanding diagnostic tasks. It is perfect for owners who prioritize a rock-solid, direct connection to the vehicle’s ECU. As a versatile diagnostic suite, the 919 Advanced excels at pulling specific stability control codes that generic devices ignore. It is the perfect tool for owners who demand high-end functionality, providing the deep-system communication required to diagnose complex steering behaviors. Whether you are using it as an obd2 scanner for jeep wrangler projects or a general-purpose diagnostic suite for a variety of vehicles, it is a tool that brings professional accuracy to your home workshop.

For those who prioritize advanced service functions and wireless freedom, the LAUNCH Creader Professional 919 Expert represents the pinnacle of DIY diagnostic power. This scanner is specifically engineered to include a professional-grade VCI Bluetooth connector, offering a wireless, stable link to your vehicle’s systems, which allows you to move freely around the vehicle during diagnostics. This scanner is particularly popular among owners looking for an obd2 scanner for electronic parking brake (EPB) service and other advanced resets. When you are looking through obd2 scanner reviews, you will find that the CRP 919 Expert is consistently praised for its bidirectional capabilities. It doesn't just read code; it allows you to perform "Service Resets," including Steering Angle Sensor (SAS) calibration, which is essential after any front-end suspension work. It is also an excellent obd2 scanner nissan users rely on for its broad compatibility, ensuring that you are diagnosing with factory-level precision, regardless of your vehicle's brand.

A Masterclass in Diagnosing and Calibrating SAS

When your vehicle triggers a stability control or steering angle fault, follow this structured diagnostic roadmap. This method moves beyond guesswork and into the realm of professional-grade reasoning.

Step 1: The Full-Network Snapshot

Connect your LAUNCH tool to your vehicle’s OBDII port and initiate a full-system health report. Unlike generic scanners, the CRP 919 series will interrogate the Stability Control and Steering modules specifically. You are looking for codes relating to "Steering Angle Sensor Not Calibrated" or "Invalid Data Received." If you have recently changed a battery or had an alignment, this code is almost certainly a simple calibration error, not a hardware failure.

Step 2: Decoding "Live Data" Streams

Navigate to the "Live Data" on your live data obd2 scanner. This is the key to a successful calibration. Place your steering wheel in the dead-center position. Check the "Steering Angle" PID.

The Calibration Test: If the scanner shows the angle is at 2° or -3° when the steering wheel is visibly straight, the stability module will trigger a fault.

The Steering Test: Rotate the wheel left and right while watching the scanner screen. The numbers should change smoothly and accurately. If they jump or become erratic, you likely have a failing sensor. If the numbers are steady but offset, you are a prime candidate for a simple electronic re-calibration.

Step 3: The Bidirectional Calibration Reset

Because your LAUNCH tool (especially the 919 Expert) supports bidirectional control, you can perform the "Steering Angle Calibration" reset directly from the tool's menu. Follow the on-screen instructions (which often involve turning the wheel fully to the left and right). Once the process is complete, the scanner will send a command to the module to "Zero" the steering angle at the current position. This command-based diagnostic is the "holy grail" for DIY mechanics, as it allows you to reset the system without paying a dealer premium.

Why This Investment Pays For Itself

Diagnostic tools are an insurance policy for your vehicle’s safety systems. Investing in a professional diagnostic tool like the LAUNCH CRP 919 series is essentially an insurance policy for your drivetrain and chassis longevity.

Confirming the Root Cause: You avoid replacing sensors or modules that were perfectly functional, saving the cost of parts you didn't need.

Saving on "Learning" Procedures: Many modern vehicles require an electronic "re-learning" or "adaptation" reset after a simple alignment. Your LAUNCH scanner allows you to perform these resets yourself, saving hundreds in shop labor.

In-Depth System Coverage: The ability to dive into manufacturer-specific protocols is what makes the LAUNCH series a reliable choice for any vehicle brand, providing you with the exact diagnostic power used by professional technicians.

The Responsibility Clause: Recognizing Limits

While a professional-grade scanner provides a massive advantage, remember that electronics cannot fix physical, terminal wear. If your scan tool shows a calibration error that keeps returning even after a successful reset, you may be dealing with a physical issue, such as a loose tie rod, a damaged steering rack, or a sensor that has been physically knocked out of its housing. No scanner can replace the need for physical mechanical inspection in those scenarios. Use the tool to rule out all electronic and sensor-offset issues first—which accounts for a surprising percentage of modern steering faults—before concluding that the problem is a severe mechanical failure.

Preventive Care: Maintaining the System

Monthly Diagnostic Checks: Once a month, take 10 minutes to hook up your handheld obd2 scanner. Run a health report. It is the cheapest safety insurance policy you can buy.

Alignment Awareness: Every time you have your tires aligned, make sure to perform a steering angle calibration immediately after. It is the best way to prevent stability control system errors.

Visual Audit: Every six months, inspect the wiring harnesses near your steering column and wheel hubs. Road salt and debris are the primary enemies of SAS sensors; keeping the harness clear prevents the electrical shorts that lead to system-wide failures.

Frequently Asked Questions

Q: Is the CRP 919 series effective for premium car brands?

A: Yes. The CRP 919 Advanced and Expert are engineered for high compatibility. Whether you need an obd2 scanner for jeep wrangler projects or a sophisticated tool for a premium sedan, it provides deep-system communication that generic tools simply ignore.

Q: Why does the ESC light stay on even after I perform the calibration?

A: Many stability systems require a "drive cycle" to confirm the repair. You may need to drive the car above a certain speed for a few minutes so the sensors can re-calibrate and confirm the fault is resolved. Your LAUNCH scanner will show you when the status changes from "Current" to "History."

Q: I'm not a pro mechanic; is this too complex?

A: The user interface of the LAUNCH series is designed for clarity. The live graphing function turns abstract numbers into easy-to-read charts, allowing you to see the "story" of your vehicle’s steering health at a glance.
