Introduction

There is a distinct turning point in every car enthusiast's journey. It usually begins on a quiet afternoon when you decide to change your own motor oil or replace a set of worn brake pads. You realize that with a solid set of hand tools, a factory service manual, and a bit of patience, you can bypass the skyrocketing labor rates of local dealerships and take complete control over your vehicle’s mechanical health.

However, as you dive deeper into the world of home auto repair, you quickly hit an invisible structural wall. Modern vehicles are no longer just mechanical assemblies of steel and iron; they are rolling computer networks. A modern car features dozens of complex microprocessors, delicate electrical control circuits, and hundreds of interactive sensors managing everything from your tailpipe emissions to your cabin comfort.

When an electrical glitch occurs or an amber warning light illuminates your instrument cluster, a standard set of chrome wrenches cannot help you. To truly master modern car maintenance and act as your own auto doctor, you must complement your mechanical tools with a specialized electronic diagnostic arsenal.

In this comprehensive guide, we will break down the essential diagnostic tools that every DIY car repair enthusiast needs to own, exploring how they work, why they save you money, and how to build the ultimate diagnostic setup in your own home garage.

Tier 1: The Heartbeat of the Garage – Advanced OBD2 Scanners

If you can only afford to invest in a single diagnostic tool for your garage, it must be a capable onboard diagnostic platform. The days of treating an OBD2 scanner as an optional luxury are long gone. Today, it is just as critical as a jack stand or an oil drain pan.

However, not all diagnostic scanners are created equal. Many entry-level DIYers make the mistake of buying a cheap obd2 scanner online. While a basic, budget friendly obd2 scanner can read static powertrain error definitions, it will leave you completely blind when a vehicle suffers an intricate network or drivability failure.

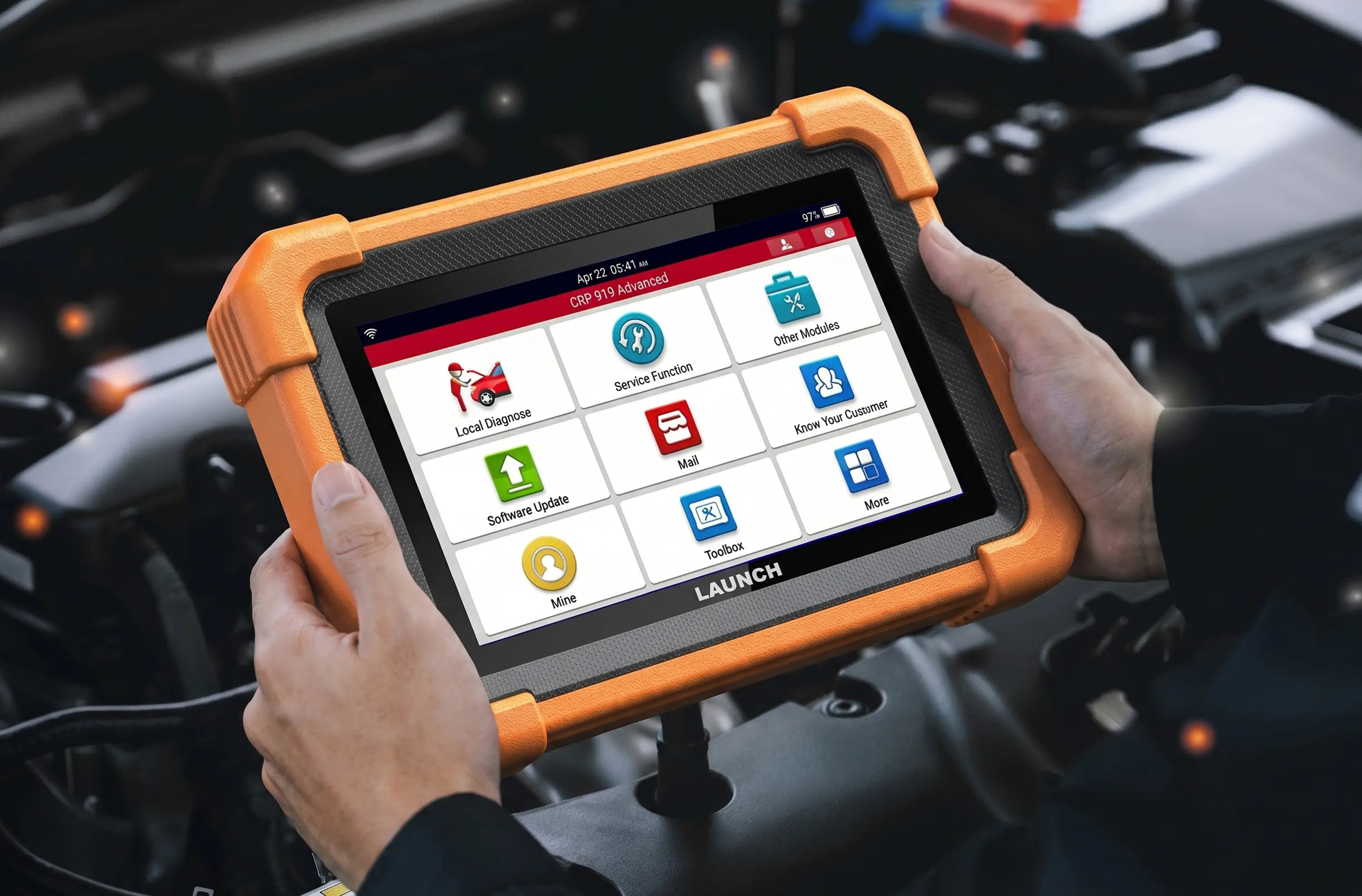

To handle modern vehicle architectures, you should skip the entry-level code readers and equip your garage with a high-performing diagnostic tool for cars that supports all-system data mapping and bi-directional activation testing—such as a premium launch obd2 scanner like the LAUNCH CRP919 Expert. Moving up to an obd2 scanner professional platform unlocks several game-changing capabilities:

• All-System Module Scanning: Unlike basic readers that only communicate with the engine, an all-system tool scans your transmission, airbags (SRS), anti-lock brakes (ABS), body control module (BCM), steering angle system, and electronic suspension simultaneously.
• Bi-Directional Actuation Testing: This allows you to send commands from the scanner to the car. If your windshield wipers or cooling fans stop working, you can command the computer to activate them instantly. If they run, you have immediately proven the wiring and motors are healthy, saving you hours of manual component tracing.
• Essential Service Resets: Modern maintenance tasks are locked behind software parameters. Investing in the best professional car diagnostic tool lets you perform electronic parking brake (EPB) retraction for rear brake jobs, complete battery registration after a swap, and execute precise steering angle sensor calibrations.

Tier 2: Tracing the Invisible Current – The Digital Multimeter (DMM)

An OBD2 scanner can pinpoint which circuit is reporting a failure, but it cannot tell you why the electricity is failing to flow. For that, you need a high-quality Digital Multimeter (DMM).

Automotive electrical troubleshooting is frequently plagued by frayed wires, loose grounding points, and green copper corrosion inside plastic connector plugs. A digital multimeter allows you to see the invisible movement of voltage and resistance across these circuits.

How to Leverage a Multimeter for DIY Diagnostics

• Voltage Drop Testing: By measuring voltage across a suspected terminal wire while the circuit is active, you can isolate high-pressure electrical bottlenecks caused by hidden rust or loose pins.
• Sensor Resistance Verification: Many temperature or position sensors (such as your engine coolant sensor or intake air thermistor) alter their internal electrical resistance based on physical environment changes. By setting your DMM to the Ohms (Ω) configuration, you can verify if a sensor probe is dead or operating within factory specifications.
• Continuity Testing: This simple audible beep function lets you touch both ends of a long, hidden wire harness to instantly confirm if a wire has been severed internally or chewed through by rodents.

Tier 3: Smoking Out Hidden Leaks – The Automotive Smoke Machine

One of the most frustrating aspects of automotive diagnostic work is hunting down a rogue intake vacuum leak or an elusive Evaporative Emissions (EVAP) leak. These tiny cracks or pinholes are often hidden completely out of sight beneath the intake plenum folds or along feet of plastic fuel lines running over the chassis frame rails.

A minor structural leak of just 0.5 mm is enough to throw off your air-fuel ratios, trigger severe random engine misfires (P0300), and cause persistent lean fuel trim codes (P0171).

An automotive smoke machine solves this problem by pressurizing the sealed intake or EVAP network with dense, low-pressure mineral oil smoke. Within minutes, you will see highly visible wisps of white smoke escaping directly from the exact location of the cracked hose, degraded gasket, or leaking throttle shaft seal, transforming a day-long guesswork session into a five-minute visual repair.

Tier 4: Evaluating Mechanical Integrity – Compression Gauges

Even the most advanced electronics cannot fix an engine that has lost its structural, physical integrity. If your engine cannot hold tight pressure inside its combustion chambers, it will suffer continuous misfires and power loss, regardless of how many new spark plugs or sensors you install.

A mechanical compression gauge kit is an indispensable, affordable tool that verifies the pure mechanical sealing capability of your pistons and cylinder heads.

Executing a DIY Mechanical Compression Sweep:

• Bring the engine block up to stable operating temperatures, then shut it down and disable the fuel pump circuit.
• Unbolt and remove all spark plugs from the cylinder head.
• Thread the compression gauge extension hose firmly into the spark plug port of Cylinder 1.
• Have a helper press the accelerator pedal flat to the floor (opening the throttle wide) and crank the starter motor over 5 to 6 times while you monitor the gauge needle rise.
• Record the peak pressure (PSI/Bar) metric and repeat across all remaining cylinders.

A healthy engine block should display high, uniform pressure across all cylinders, with no individual cylinder dropping more than 10% to 15% below its neighbors. Low compression in an isolated cylinder immediately alerts you to deep mechanical damage—such as a burnt exhaust valve, a blown head gasket lip, or collapsed piston rings.

How to Prevent Diagnostic Equipment Obsolescence

High-performing diagnostic tools are fine-tuned pieces of technological investment. Protect their internal architecture and ensure your garage stays prepared for future vehicle generations with these simple habits:

• Execute Regular Wi-Fi Databases Updates: Drivability profiles, module maps, and coding parameters shift constantly as manufacturers update factory software. Connect your standalone scan tablet to your garage Wi-Fi network once a month to pull the latest vehicle library additions and patch bug fixes.
• Clean Probes After Every Use: Automotive engine bays are filled with abrasive grit, corrosive battery acid, and sticky lubricants. Always wipe down your multimeter leads, smoke machine adapters, and OBD2 cable plugs with a clean microfiber cloth before packing them away.
• Store Gear in a Weatherproof, Shockproof Shell: Extreme garage temperature swings (freezing winter lows and boiling summer heat) create condensation that can ruin sensitive internal circuit boards. Keep your electronic diagnostic tools safely tucked inside a padded hard-shell storage case on a secure workbench shelf.

Frequently Asked Questions (FAQ)

1. Do premium advanced scanners require expensive yearly subscriptions to function?

   No. Most high-tier diagnostic tools include 1 to 2 years of completely free software database updates out of the box. Once that initial period ends, your scanner does not stop working or shut down. It simply freezes onto the latest software version you downloaded. You can continue running all system scans, live data tracking, and bi-directional actuator tests on your existing vehicles indefinitely without ever being forced to pay a renewal fee.

2. Can I use standard shop cleaners or brake spray to clean a dirty mass airflow sensor or diagnostic connector plug?

   Absolutely not. Harsh industrial solvents like brake cleaner or carburetor spray leave behind a fine chemical lubricant layer that does not evaporate. This greasy residue will ruin electronic data signals and coat sensitive measuring filaments. Always utilize a specialized, non-conductive Electronic Contact Cleaner or dedicated MAF Sensor Cleaner designed to leave surfaces 100% dry and residue-free.

3. I am looking for my first tool. Should I buy a cheap obd2 scanner or save up for an advanced professional car diagnostic tool?

   If you only own one older vehicle and simply want to check why your check engine light is on before a smog check, a budget friendly obd2 scanner will handle the basics. However, if you plan to do your own brake jobs, register new car batteries, or diagnose safety systems like ABS and SRS on modern vehicles, saving up for an obd2 scanner professional unit or a dedicated launch obd2 scanner is highly recommended. It will save you thousands of dollars in shop diagnostic fees over time.

Disclaimer

The technical advice, diagnostic blueprints, and car care guides listed on our blog are intended strictly as helpful educational resources for general reference. While we strive for absolute accuracy, vehicle architectures differ wildly. Always reference your factory owner's manual or consult a certified mechanic for specific safety protocols and repair steps.
