Introduction

Few things cause an immediate sinking feeling quite like the sudden illumination of that amber outline on your dashboard. One moment you are cruising down the road, and the next, your vehicle's onboard computer is flashing a silent warning.

For many drivers, this light is an immediate trigger to pull into a dealership and brace for a steep diagnostic fee. However, your car isn't trying to mystify you—it is actually waiting to tell you exactly what is wrong. Thanks to universal digital standards built into every modern automobile, you can easily decode this dashboard warning from your own garage.

Diagnosing a dashboard warning light at home doesn't require a degree in advanced automotive engineering. With the right approach and a basic digital interface, you can transform guesswork into a precise physical repair. In this comprehensive blueprint, we will guide you through the process of connecting with your vehicle's network, interpreting its data, and isolating the root cause of the issue safely.

The Initial Triage: Deciphering the Warning Style

Before you even reach for your garage tools, you can gather critical clues simply by observing how the dashboard light behaves. Car computers are programmed to communicate the urgency of a fault through two distinct illumination profiles:

The Steady, Solid Glow

If the warning icon illuminates and stays solid while the engine runs, the vehicle has detected a fault within its powertrain or emissions monitoring framework. While this indicates an active problem that requires attention, it is not an immediate roadside emergency. The car is typically safe to drive to your destination or a local workshop for further investigation.

The Rapidly Flashing Light

A blinking or flashing dashboard light indicates a severe operational crisis. This signal almost always warns of a massive engine misfire that is dumping raw, unburnt fuel into the exhaust stream. If you continue driving with a flashing light, this unburnt fuel will ignite inside your expensive catalytic converter, melting its internal core within miles.

Emergency Protocol: If you ever see a flashing warning light, pull over safely as soon as possible, turn off the ignition, and have the vehicle towed to a repair station to avoid catastrophic exhaust or structural engine meltdown.

The Essential Toolkit for Home Diagnosis

To step past visual guesswork, you need a basic tool to interface with your car's computing network. Fortunately, modern vehicle architecture makes this incredibly accessible for everyday vehicle owners.

The Baseline Interface (OBD2 Reader)

This is your primary translation tool. It hooks into your vehicle's data bus to extract the specific fault codes logged by the computer. For straightforward garage triaging and quick tailpipe readiness checks, choosing a targeted check engine light reader like the LAUNCH Creader G700 is an excellent choice. It serves as an optimized, dedicated engine code scanner that pinpoints core engine diagnostics and emissions profiles without overwhelming you with overly complex menus.

A Mobile Flashlight or Headlamp

Many engine sensors are buried deep beneath plastic intake plenums or along dark chassis rails.

A Digital Multimeter

Essential if your diagnostic path leads to checking raw battery voltage or testing the internal electrical resistance of a suspected sensor plug.

Step-by-Step Home Diagnostic Routine

Once you have your interface tool ready, follow this orderly sequence to pull the data from your vehicle’s control modules:

1. Connect to the Vehicle Data Port

   With the vehicle turned completely off, locate the 16-pin Diagnostic Link Connector (DLC). This port is typically hidden directly beneath the driver's side dashboard, often just below the steering column knee bolster or right next to the hood release latch. Align the trapezoidal plug of your tool and press it firmly into the socket. The device will boot up automatically using raw power delivered straight from your car's connector pins.

2. Power Up the Network

   Insert your car key into the ignition and turn it to the "ON" position (or press your Start button twice without stepping on the brake pedal). This wakes up all the electronic control modules on the digital communication bus but leaves the engine off.

3. Extract the System Fault History

   Navigate to the diagnostic menu on your tool screen and select the prompt to read active trouble codes. Using a reliable obd2 scanner for check engine light troubleshooting allows the vehicle to respond immediately, displaying a five-character alphanumeric code (such as P0302 or P0455). Write this code down.

4. Capture the Operating Context (Freeze Frame Data)

   Don't just delete the code once you see the number. Scroll through your tool's options and pull up the Freeze Frame Data. This feature displays a digital snapshot of exactly what your vehicle was experiencing at the exact microsecond the code triggered—including the engine RPM, coolant temperature, fuel trims, and vehicle speed.

   For instance, if a code logs only when the engine coolant temperature is cold (20°C), you know the issue is a cold-start anomaly rather than a failure that occurs under intense highway operating heat.

Translating the Alphanumeric Diagnostic Code

Every standard diagnostic code follows a distinct structural logic that tells you exactly where to look for the failure:

P 0 3 0 2
│ │ │ │ └── Identifies the specific component or cylinder location
│ │ │ └──── Isolates the vehicle subsystem (e.g., 3 = Ignition/Misfires)
│ │ └────── Indicates whether the code is generic OBD2 (0) or manufacturer-specific (1)
│ └──────── Defines the primary automotive category (P = Powertrain, B = Body, C = Chassis)


By breaking down the code, you instantly eliminate entire sections of the car. A code starting with P0300 tells you to focus your attention entirely on ignition coils, spark plugs, or fuel delivery injectors, completely ruling out unrelated components like your air conditioning compressor or suspension airbags.

Tracing the Glitch: Physical Visual Inspection

Once your engine code scanner points you toward a specific system, open the hood and perform a targeted visual review before unbolting any hardware. A surprising number of dashboard lights are triggered by simple, visible physical disruptions rather than completely broken sensors:

Check the Vacuum Lines

Look for rubber hoses running around the intake manifold that have turned brittle, cracked open from dry rot, or completely unclipped from their mounting ports.

Review Wiring Harness Integrity

Ensure no cables are resting directly against a glowing hot exhaust manifold or chafing against a spinning drive pulley.

Inspect Plastic Sensor Connectors

Unplug the connector for the suspected component. Check inside the socket for green copper corrosion, loose metal pins, or engine oil that has leaked past a seal and fouled the electrical pathway.

Moving Beyond a Basic Scan: Tracking Live Parameters

If a physical inspection reveals no obvious wire splits or loose hoses, you need to observe how the engine handles real-time data shifts.

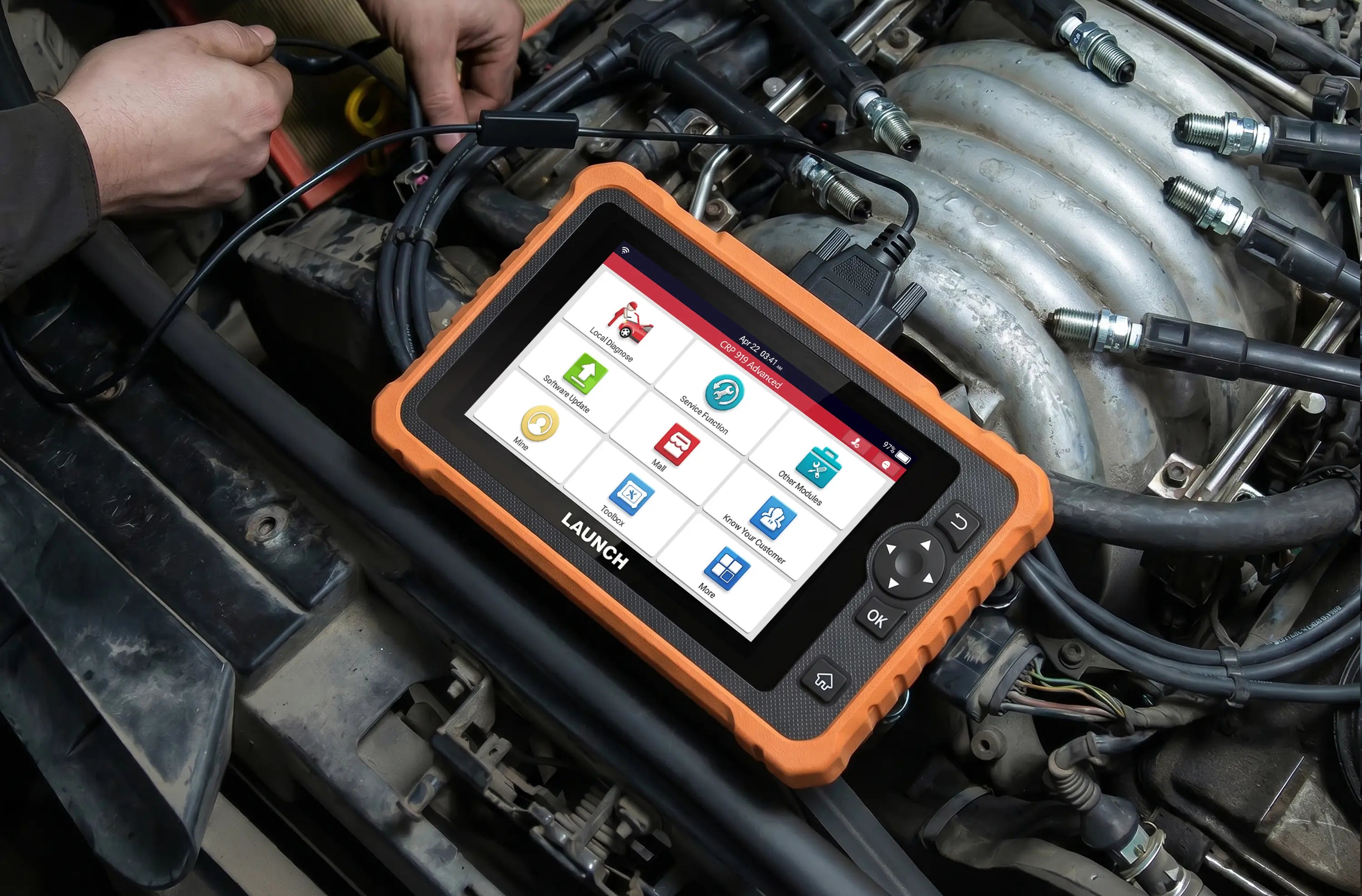

For advanced troubleshooting—such as tracking down an intermittent misfire or watching oxygen sensor waveforms switch back and forth—using a comprehensive scan car diagnostic tool opens up deeper analytical capabilities. By upgrading to an all-system scanner and pulling up live data graphics, you can watch individual parameters shift as you rev the engine, allowing you to catch a lazy sensor or a fluctuating vacuum leak right as it drops out.

How to Prevent Equipment Contamination in the Garage

Your diagnostic gear is an investment in your automotive independence. Keep your tools reading cleanly and accurately with these simple habits:

1. Clean Connection Terminals Routinely

   Shop environments are naturally filled with greasy residues and metallic dust. Wipe down the 16-pin connector plug of your OBD cable with a clean microfiber cloth before storing it away.

2. Avoid High-Moisture Environments

   Storing electronic scanners on damp garage floors or inside boiling hot trunks can cause internal condensation that corrupts sensitive circuit board tracking. Keep your devices resting inside a dedicated storage case on a dry workbench shelf.

3. Power Down the System Gracefully

   Never yank the diagnostic cable out of the dashboard port while your obd2 scanner for check engine light diagnostics is actively mid-way through clearing a code or reading a live module tree, as this can interrupt data loops and freeze the tool's firmware.

Frequently Asked Questions (FAQ)

1. Can a loose fuel cap really turn on my check engine light?

   Yes! Your vehicle treats fuel vapors very seriously to protect the environment. The Evaporative Emissions (EVAP) network constantly runs vacuum tests on your fuel tank. If your gas cap is loose, cracked, or has a dirty rubber seal, outside air will bleed into the tank during the self-test. The computer interprets this vacuum loss as a system leak and instantly illuminates the warning light, typically logging code P0440 or P0455.

2. If I clear the code with my reader and the light stays off, did I fix the car?

   Not necessarily. Erasing a trouble code merely clears the computer's short-term memory bank—it does not repair physical components. If the underlying fault was a one-time sensor anomaly, the light may stay off. However, if a part is physically broken or electrically shorted, the computer will detect the failed circuit parameter the moment it re-runs its internal diagnostic monitor, turning the warning light right back on.

3. Why won't my basic code reader show me why my airbag (SRS) or anti-lock brake (ABS) lights are on?

   Basic entry-level code readers are hardwired as emission specialists, meaning they talk exclusively to the engine control module to track tailpipe performance. Safety networks like your airbags or traction control systems reside on completely separate electronic sub-networks. To look past the engine bay and communicate with those individual chassis and safety modules, you must upgrade your garage to a comprehensive all-system diagnostic scanner.
